The enduring one of the Industrial Coffee Grinders
The smaller daughter of the DK27.
The DK15 is a great option for roasters who are looking for an increased hopper capacity and continuous grinding. This model grinds ~250 lbs/hr with a 60 lb hopper capacity.
• Small space requirement
• Movable container for the ground product
• Tight discharge chute for dustreduced
grinding

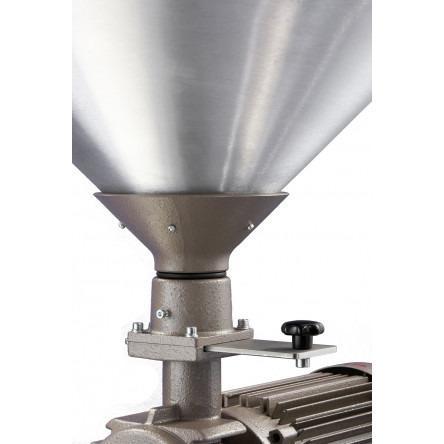

• Large hoppers
• Lock plate to interrupt the feeding of the product
to be ground
• Integrated hopper magnets as a protection
against metal in the product
• Powerful three-phase motors with surface cooling
and high starting torque.This makes them very
suitable for continuous use.
• Air cooling of grinder casing
• Service-free, constantly greased bearings
• Motor protection against electrical overload
• Extremly wear resistant, precision grinding discs
for careful cutting of the material
• The grind adjustment wheel provides fine, accurately
repeatable control of the degree of grinding finess.
• DK 15 LS with burrs from tool steel – double sided
to double the life time of the burrs.
• DK 15 LH with burrs from tungsten carbide – double sided
for up to 20 times longer life time of the burrs
Hopper Capacity | 60 lbs |
---|---|
Grinding Capacity – fine to medium | 250 lbs/h |
Voltage | 208 - 220 V |
Frequency / Phases | 60 Hz / Three-Phase |
Motor - rated power, Amps / hp | 9.7 Amps / 3 hp |
Grinding Disc Diameter | 130 mm |
Grinding Disc Material | Tool Steel |
Dimensions (w x d x h) | 31.1“ x 48.4“ x 61.0“ |
Net weight | 291.0 lbs |
Shipping Weight | 478.4 lbs |
EQUIPMENT FEATURES | |
Container | 200l, mobile (53 gal) |
Container dimensoins (w x d x h) | 27.2“ x 31.1“ x 27.6“ |
Hopper Magnet | Yes |
Overload Protection | Yes |
Shot Counter | Yes |
Standard colours (structured paint) | Grey-red or Copper |
SPECIAL FEATURES | |
Other Grinding Goods | Coffee,spices, grains, poppy seed, linseed |
Tungsten Carbide Discs | Yes |
Pod-Grinding | Yes |
