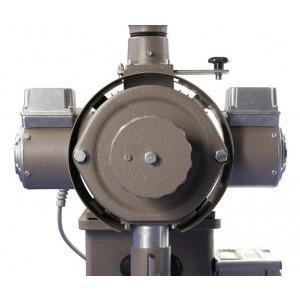

Mahlkonig DK27LVH Industrial Coffee Grinder
The Big Enduring One of the Industrial Coffee Grinders
The DK27 levels up the capacities of your pre-ground coffee production to ~550 lbs/hr with a large hopper and ability to grind continuously. ventilated, Tungsten Carbide Burrs, Black with container.
Features
• Small space requirement
• Movable container fort he ground product
• Tight discharge chute for dust reduced grinding

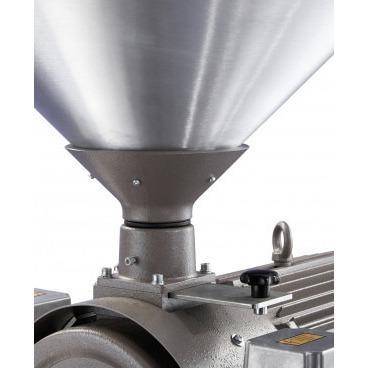

• Large hopper
• Lock plate to interrupt the feeding of the product
to be ground
• Integrated hopper magnets as protection against
metal in the product

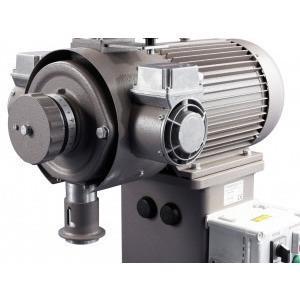

• Powerful three-phase motor with surface cooling and
high starting torque
• Air cooling of the grinder casing
• Service-free, constantly greased bearings
• Motor protection against electrical overload
• Extremely wear resistant, precision grinding discs for a
homogenous ground product
• The grind adjustment wheels provides fine, accurately
repeatable control of the degree of finess.
Specifications
| SPECIFICATIONS | DK 27 LVS | DK 27 LVH |
|---|---|---|
| Hopper Capacity | 66 lbs | 66 lbs |
| Grinding Capacity – Turkish lbs/h | 616 | 572 |
| Grinding Capacity – medium, lbs/h | 660 | 616 |
| Voltage | 208 - 220 V | 208 - 220 V |
| Frequency / Phases | 60 Hz / Three-Phase | 60 Hz / Three-Phase |
| Motor - rated power, Amps / hp | 25 Amps / 7.5 hp | 25 Amps / 7.5 hp |
| Grinding Disc Diameter | 180 mm | 180 mm |
| Grinding Disc Material | Tool steel | Tungsten Carbide |
| Dimensions (w x d x h) | 31.1“ x 48.4“ x 63.0“ | 31.1“ x 48.4“ x 63.0“ |
| Net Weight | 341.7 lbs | 341.7 lbs |
| Shipping Weight | 529.1 lbs | 529.1 lbs |
| EQUIPMENT FEATURES | ||
| Container | 200l, mobile (53 gal) | 200l, mobile (53 gal) |
| Container dimensoins (w x d x h) | 27.2“ x 31.1“ x 27.6“ | 27.2“ x 31.1“ x 27.6“ |
| Hopper Magnet | Yes | Yes |
| Overload Protection | Yes | Yes |
| Standard colours (structured paint) | Grey-red or Copper | Grey-red or Copper |
| SPECIAL FEATURES | ||
| Other Grinding Goods | Coffee, spices, grains, poppy seed, linseed | Coffee, spices, grains, poppy seed, linseed |
| Pod-Grinding | Yes | Yes |
| Grinding Discs Resharpable | Yes | Yes |
